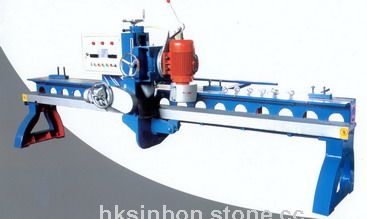

SBI-08 STONE POLISHING MACHINE

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1286710

• Place of Origin:

  China
• SBI-03 STONE CURVE & STRAIGHT DUAL-PURPOSE GRINDING & POLISHING MACHINE (LATEST DESIGN)

  The machine motor adopts doubie-speed regulation with quick molding and polishing, Its radiance is better than of the ordinary abrader. The transmission part utilizes gear connection. The metal band has been stuck to the track face and anti-wear plate coated to slide. It greatly reduces the mechanical vibrating force. As a result, it prolongs two to three times longer of the overall frame service life. At present, it is highest edge-arrissing accuracy machinery in the market.

  Main Technical Parameters:

  Linear edge trimming length: 2800mm X 3300mm

  Curved edge trimming length: 2600mm (3000mm)

  Main Frame Power: 4 kw

  Gross Horsepower: 4.55kw

  Spindle Diameter: 30mm

  Outline Dimension: 3600mm X 1500mmX1500mm

                   (4000mm X 1500mm X 1500mm)
